Manual Mortar Mixer

Manual Mortar Mixer

M2430	Manual Mortar Mixer, 220-240 V 50/60 Hz
M2430/110	Manual Mortar Mixer, 110 V 60 Hz
M2430/01	Spare Bowl for M2430
M2430/02	Spare Beater for M2430

ORIGIN: TÜRKİYE

Standards: ASTM C109, C305 | AASHTO T106, T162 | EN 196-1, 196-3:2005, 413-2, 459-2, 480-1

M2430	Manual Mortar Mixer, 220-240 V 50/60 Hz
M2430/110	Manual Mortar Mixer, 110 V 60 Hz
M2430/01	Spare Bowl for M2430
M2430/02	Spare Beater for M2430

ORIGIN: TÜRKİYE

Standards: ASTM C109, C305 | AASHTO T106, T162 | EN 196-1, 196-3:2005, 413-2, 459-2, 480-1

Manual Mortar Mixer

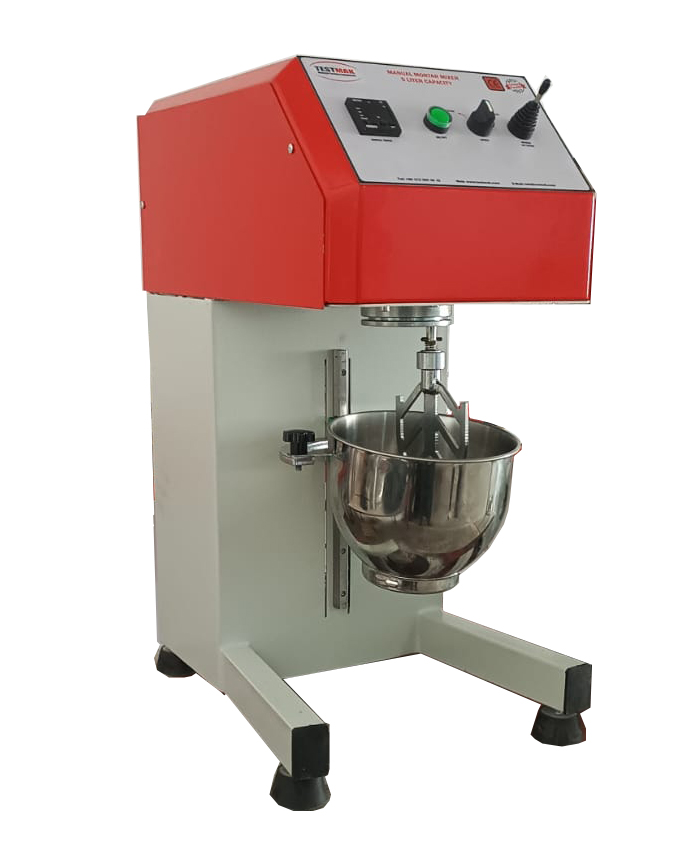

The Manual mortar mixer has been designed to mix mortars and cement pastes primarily to the international of standards. The user can choose beater speeds easily by using switch fitted to the machine.

The mixing time can be adjusted from the digital timer on the front control panel.

Two speeds are defined on the manual mortar mixer: low and high speed.
The User can choose beater;
Low Speed: The paddle revolves at a rate of 140 rpm with a planetary motion of 62 rpm.
The paddle revolves at a rate of 285 rpm with a planetary motion of 125 rpm and prepare the cement sample according to the standards.

The mixer is supplied complete with bowl and the beater.

Dimensions	400x580x650 mm
Weight (approx)	56 kg
Power	400 W

Dimensions

400x580x650 mm

Weight (approx)

56 kg

Power

400 W
